Product Information for leaf spring OEM 1693875,1426358,2934400-00,F017T773ZA75
|
1 |
Spring Numer: |
2 |
|
2 |
Size: |
80x32 |
|
3 |
Painting Colour: |
black, gray, red |
|
4 |
Bushings: |
Rubber Bushings |
|
5 |
Application: |
Daf truck |
|
6 |
Spring Material: |
60Si2Mn SUP9/55CrMn 50CrVA 51CrV4 52CrMoV4 |
|
7 |
Packing Way: |
Square Wood Wooden Pallet Metal Pallet |
|
8 |
MOQ |
50 |
|
9 |
Warranty time( used time): |
6 months |
Products Description

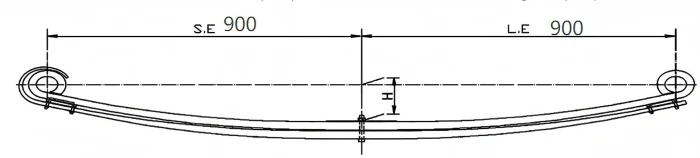

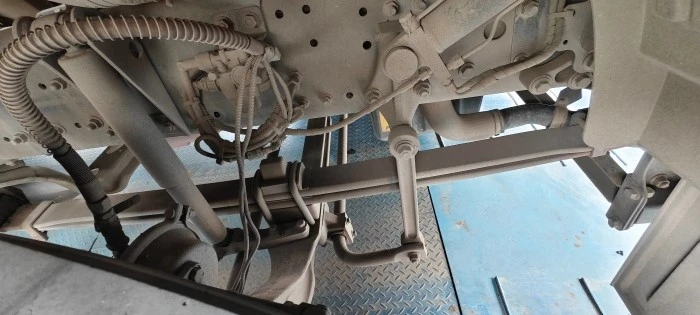

High-quality leaf spring OEM 1693875, 1426358, 2934400-00, F017T773ZA75 for Daf dumper truck is a full taper leaf spring, used on the front axles suspension of Daf trucks. It is compatible to apply for a couple of DAF models: CF75(＞2000), CF85(＞2000), XF105(＞2006), XF95(＞2002).
Usually assembling is painted black directly by electrophoresis; accept cumtomized other colour painted manually.
Product inspection report for every batch is available for us to provide. The springs steel material is optional; there are 60Si2Mn, SUP9/55CrMn, 50CrVA, 51CrV4, and 52CrCoV4. Usually, the spring steel thickness is ＜ 18mm, we recommend 60Si2Mn; when the thickness is ≥18mm, we recommend at least SUP9/55CrMn, some even choose better spring steel according to the spring technology.
FAQ
Q: How long will one order take?
A: Usually, in 15-30 days, if the order has many kinds of specifications and rarely used materials, the time will be longer.
Q: How about payment terms?
A: A 40% deposit, the remaining paid before delivery.
Q: Which ports can I choose?
A: Qingdao, Tianjin, Shanghai, Guangzhou, Ningbo, and Yiwu are available.
Q: Can you accept the colour customized?
A: Yes, we can, but the customized colour is painted manually instead of electrophoresis process.
Q: How about the package way?
A: The default package way is wooden pallet, and it is free; the other special packages are charged extra.
